Ezlock Pallet Racks

Ezlock pallet racks (50mm pitch) are one of the high-sales selective pallet racking in Europe and Southeast Asia markets. It's a typical storage rack made up of a range of frames and beams to store your palletized goods, which offers greater flexibility in adjustment of beam levels, using 4 or 5 hooks beam connectors. Moreover, the 50-pitch pallet rack system is stable and strong enough to be utilized in highly seismic areas.


Ezlock Pallet Racks


Maxrac Ezlock Pallet Racking System offers a cost-effective, high-capacity storage solution with easy access to products, making it ideal for businesses handling complex orders and mixed SKUs. Designed for quick installation, easy adjustments, and full customization.

Featuring 5-hook end connectors, the beam levels can be adjusted in 50mm increments, providing enhanced load-bearing capacity and greater flexibility in beam positioning.


Ezlock Pallet RacksEzlock Pallet Racks

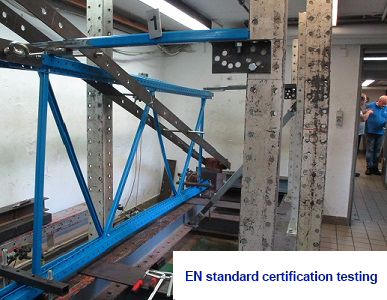

Engineered to strict EN and Australian Standards, the Ezlock system is one of the most popular and versatile racking solutions in the industry. It not only meets rigorous safety and quality requirements but also adapts to a wide range of industrial and commercial storage needs, making it a reliable and efficient choice for modern warehouses.


Ezlock Pallet RacksEzlock Pallet Racks

Ezlock Pallet RacksEzlock Pallet Racks

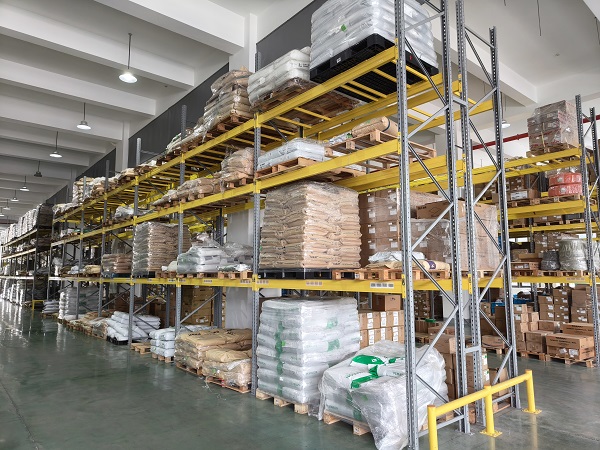

Ezlock Pallet Racks are a type of industrial storage solution designed to provide efficient and organized storage for pallets in warehouses, distribution centers, and other facilities. These racks are known for their durability, ease of assembly, and safety features, making them a popular choice for heavy-duty storage needs.


Ezlock Pallet RacksEzlock Pallet Racks

Ezlock Pallet Racks Advantages

• Pre-galvanized and hot dip galvanized upright & Frame bracing are available.

• Follow seismic specifications in order for metal racks to withstand earthquakes

• Beam height can be adjusted freely per 50mm according to the storage needs

• Superior range of load-bearing capacity, 4 hookers, and 5 hookers are available


Key Features of the Ezlock Pallet Racking System


Locking Mechanism

• Ezlock Design: The "Ezlock" feature refers to a locking mechanism that secures the beams to the uprights, ensuring stability and preventing accidental dislodging of the beams. This design enhances safety and makes the racks more secure during use.

• Tool-Free Assembly: The Ezlock mechanism often allows for tool-free assembly, making it easier and quicker to set up or adjust the racks as needed.


Ezlock Pallet RacksEzlock Pallet Racks

Durability and Strength

• Heavy-Duty Construction: Ezlock pallet racks are typically made from high-quality steel, providing the strength needed to support heavy loads. These racks are designed to handle substantial weight, making them suitable for storing a wide range of palletized goods.

• Corrosion Resistance: Many EZ Lock platform racks are coated with a powder finish or galvanized to resist rust and corrosion, extending their lifespan and ensuring reliable performance in various environments.


Versatility

• Adjustable Shelves: The beams on Ezlock racks can often be adjusted in height, allowing for customization of shelf spacing to accommodate different sizes of pallets or other storage items.

• Compatibility: These expandable EZ Lock platform racks and pallets are often compatible with various types of decking (e.g., wire decking, solid decking) and accessories (e.g., safety bars, row spacers), providing flexibility in configuring the storage system to meet specific needs.


Safety Features

• Load Capacity Labels: Ezlock racks typically come with load capacity labels, indicating the maximum weight each beam level can support, helping to prevent overloading and ensuring safe use.

• Impact Resistance: The design of the uprights and the locking mechanism provides resistance to impact, reducing the risk of damage from forklifts or other equipment.


Space Efficiency

• Optimized Storage: Ezlock pallet racks are designed to maximize vertical storage space, allowing businesses to make the most of their warehouse or storage area.

• Ease of Access: The open design of pallet racks ensures that pallets can be easily accessed with forklifts, improving operational efficiency.


Ezlock Pallet RacksEzlock Pallet Racks

Ease of Installation

• Modular Design: Ezlock pallet racks are often modular, meaning they can be easily expanded or reconfigured as storage needs change. This flexibility makes them a long-term solution that can grow with your business.

• DIY Friendly: While professional installation is recommended for large or complex systems, many Ezlock pallet racks are designed for easy assembly, making them accessible for smaller businesses or DIY projects.


Ezlock Pallet RacksEzlock Pallet Racks


Packing

Our racks are carefully and securely packaged using reinforced materials. This ensures customers receive the goods in perfect condition.


Ezlock Pallet RacksEzlock Pallet RacksEzlock Pallet Racks





EZ lock Pallet Racks Specification


Upright 80x70, 90x70, 105x70,   120x85mm
Hole Pitch 50 mm
Box Beam size80x50, 90x50, 100x50, 110x50, 120x50,   130x50, 140x50, 160x50
Upright Thickness1.8/2.0/2.5/2.75/3.0 mm
Beam Thickness1.5/1.8/2.0 mm

Frame Height

Up to 12000mm
Beam LengthUp to 6000mm
Capacity per layer500-4000KG


Ezlock Upright Frame

The Ezlock Pallet Racking Upright is designed with an optimal profile and a 50mm hole pitch, which significantly enhances its loading capacity and enables more efficient space utilization. Crafted from high quality steel, these uprights exhibit remarkable rigidity, ensuring the structural integrity of the entire racking system.


Ezlock Pallet RacksEzlock Pallet Racks

Ezlock Pallet Racks


To further strengthen the stability of the frame, the uprights are securely bolted using a combination of horizontal and diagonal bracings. Different base plates evenly distribute loads on the floor.


Ezlock Pallet RacksEzlock Pallet Racks Ezlock Pallet Racks


Understanding our customers' diverse needs, we offer uprights in two finishes: powder - coated and pre - galvanized. These come in different profiles to meet a wide range of loading requirements, ensuring each customer can find an ideal storage solution.


Ezlock Pallet RacksEzlock Pallet Racks



Ezlock Beam

1. Beam connector

Ezlock Beam connectors are engineered to enhance resistance against sideways movements. They efficiently bear vertical loads and handle such movements via specially designed high - performance hooks.

3-hole connect B80 Beam, 4-hole connect B100 Beam, 5-hole connect B160 Beam

Ezlock Pallet Racks  Ezlock Pallet Racks  Ezlock Pallet Racks


2.Safety Lock

Each beam is supplied with two Spring Safety Locks, which are pre - installed at the factory. This not only enhances the installation work efficiency but also eliminates safety risks associated with the absence of safety locks. Moreover, it ensures that the beam is accurately positioned and helps prevent the beam from being accidentally dislodged during operation.


Ezlock Pallet RacksEzlock Pallet RacksEzlock Pallet Racks


3.Beam Profiles

Ezlock Box beams are available in a comprehensive range to cover most of the loading requirements. we use automatic welding machines to stabilize beam quality and ensure mass production.


Various profiles available as below:

3.1 Box Beam

Box Beam section height available from 80-160mm.

Ezlock Pallet Racks

Ezlock Pallet Racks

3.2 Rec Box Beam

Ezlock Pallet Racks

Ezlock Pallet Racks

3.3 Step Beam

Ezlock Pallet Racks

Ezlock Pallet Racks


FAQ:

Please inform us of the following information for a quick pallet-racking solution:


Drawing (if available)

Size of your warehouse

Size of racking(H*W*L)

Levels of the racking

Loading capacity of each level

(RA) Color


Box beam Box beam
Front view Front view
Side view Side view
Corner protector Corner protector
L type Corner protector L type Corner protector
Pipe bump protector Pipe bump protector
Post protector Post protector
Upright front protector Upright front protector
Support bar Support bar
