Shuttle Racks: Maximizing Warehouse Storage and Efficiency

Shuttle racks are an innovative, high-density storage solution that revolutionizes warehouse management by automating the storage and retrieval of pallets. These systems use a shuttle cart, which moves along rails within the racks to deposit and retrieve pallets in deep storage channels. Shuttle rack systems are ideal for businesses that need to maximize storage space while improving efficiency and reducing labor costs in their warehousing operations.

No matter what industry you are in, such as e-commerce industry, logistics industry, etc., we have cooperated with different industries and types of companies, and there are some cases for your reference. Send us the details of your actual application, and we will have professional personnel to communicate with you and finally give you a satisfactory industrial shelf solution.


What are Shuttle Racks?

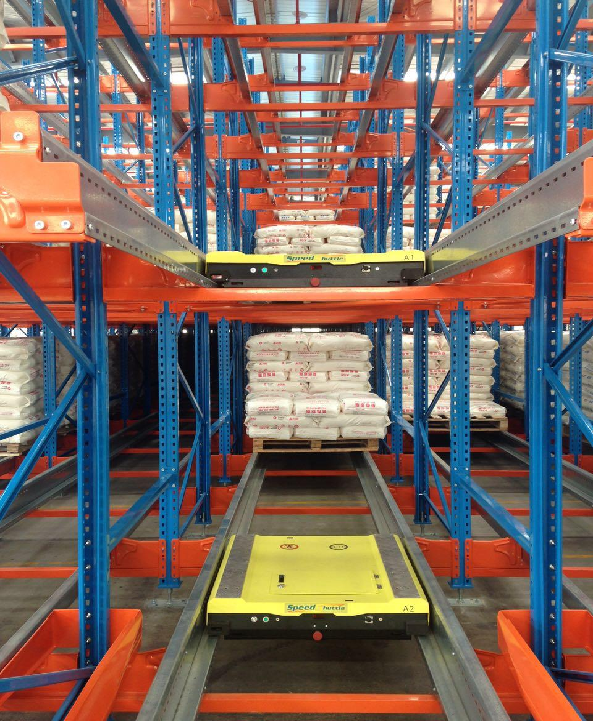

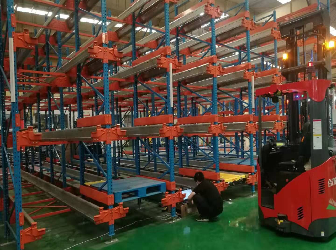

Shuttle racks are a semi-automated storage system where a shuttle cart, operated by remote control, moves pallets in and out of storage channels inside the racking structure. The shuttle runs on rails within the racking system and can be placed on multiple levels of the rack. Unlike conventional pallet racks, which require forklifts to enter each aisle, shuttle racks allow forklifts to stay outside the rack, while the shuttle transports pallets to their designated positions.


How Shuttle Rack Systems Work


Loading Pallets:

The shuttle rack system begins with a forklift placing a pallet onto the shuttle. The shuttle then moves the pallet into the designated storage position along the rails in the deep channels of the rack.


Storing Pallets:

Once the shuttle receives the pallet, it transports the pallet along the storage channel, placing it in the correct location as determined by the warehouse management system. The shuttle can deposit the pallet deep inside the rack, making it ideal for storing multiple pallets in a single lane.


Retrieving Pallets:

When a pallet needs to be retrieved, the shuttle moves to the specific channel, lifts the pallet, and transports it to the front of the rack, where a forklift or other handling equipment picks it up.


Operation Modes:

Shuttle rack systems can work in First-In, First-Out (FIFO) or Last-In, First-Out (LIFO) modes, depending on the product flow required by the warehouse.




Shuttle Racks



Key Features of Shuttle Rack Systems


Automated Shuttle Cart:

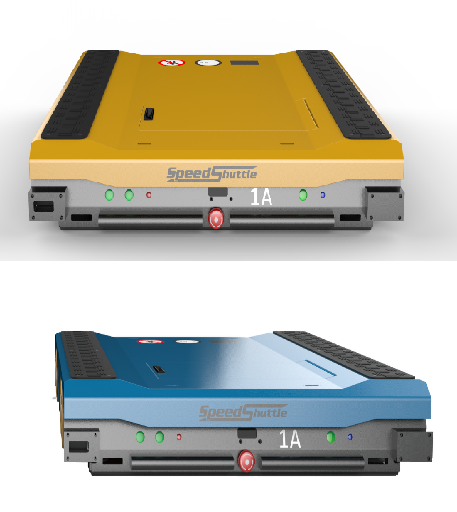

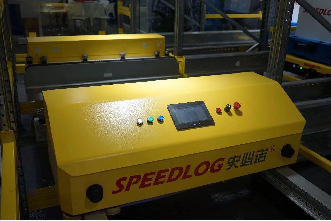

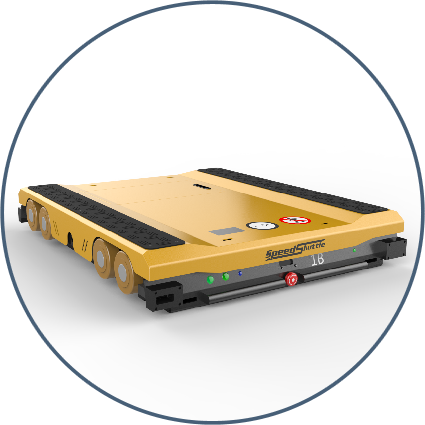

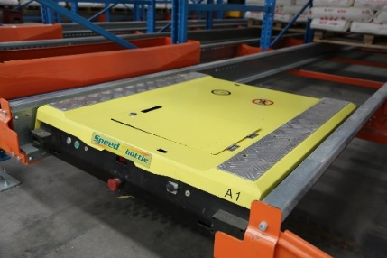

The shuttle cart is the core component, running on battery power and controlled by a remote or warehouse management system (WMS). It operates on rails installed within the racking system, enabling smooth transportation of pallets.


High-Density Storage:

Shuttle racks allow for deep-lane storage, with multiple pallets stored in a single channel. This design maximizes the use of warehouse space by reducing the number of aisles needed.


Flexible Configuration:

Shuttle racks can be configured to handle different pallet sizes, weights, and storage depths. They can also be customized for multi-level storage, making them versatile for various warehouse layouts and storage requirements.


Fast Operation:

The semi-automated nature of shuttle rack systems speeds up pallet loading and retrieval, reducing forklift travel time and increasing warehouse throughput.


Battery-Operated Shuttle:

The shuttle cart typically runs on long-lasting lithium batteries, allowing for extended operation. The batteries are rechargeable, ensuring that the system operates efficiently without interruptions.


Safety Features:

Shuttle rack systems are equipped with safety mechanisms, such as sensors, to prevent collisions and ensure smooth operation within the storage channels.


Shuttle Racks

Applications of Shuttle Rack Systems


Food and Beverage Industry:

Shuttle racks are ideal for storing large volumes of food and beverages, especially in warehouses that handle perishable goods. The high-density storage capability allows for better organization, while the shuttle system ensures quick access to products.


Cold Storage Warehouses:

In cold storage facilities, space is often limited and expensive to maintain. Shuttle racks maximize the use of available space and allow for efficient storage of frozen or refrigerated products while minimizing energy consumption.


Manufacturing Warehouses:

Manufacturing companies use shuttle racks to store raw materials, components, and finished products. The system’s flexibility and scalability make it easy to manage inventory and keep production lines running smoothly.


E-Commerce and Retail Distribution Centers:

E-commerce and retail distribution centers handle large volumes of products that need to be stored and retrieved quickly. Shuttle rack systems streamline this process, reducing order fulfillment times and ensuring efficient inventory management.


Pharmaceutical Industry:

Shuttle racks are commonly used in pharmaceutical warehouses to store and manage medical supplies, drugs, and other health products. The system's efficiency and high-density storage capability are especially useful in handling sensitive and high-volume products.
