Long Span Shelving

Description Specification Detail View

Download Catalog

Heavy-Duty Longspan Shelving System | Industrial Storage Racks | Maxrac

Longspan shelving or widespan shelving system is the perfect industrial shelving solution, which can be satisfied with most of the storings from small light components to giant heavy cartons to fit for your loading requirements, due to the flexibility of adjusting height and configuration with different choices of metal shelvings. It's easy to adjust the heights and configurations as your needs.

Long Span Shelving

Description: Discover Maxrac's industrial-grade longspan shelving systems. Engineered with a secure bolted structure supporting 300-800kg per level. Perfect for warehouses, automotive shops, and mezzanine integration.

Pls click on the image or review the youtube link https://www.youtube.com/watch?v=Hbp3bOzNdP0

Industrial-Grade Bolted Structure | 300–800 kg UDL Load Capacity Per Level

Are you still risking your warehouse safety and efficiency with flimsy, wobbling boltless racks?

As a premier Chinese racking factory with decades of global export experience, Maxrac® engineers highly versatile, industrial-grade longspan shelving systems explicitly designed to thrive in demanding commercial, industrial, and logistics environments. Built with a heavy-duty bolted structural design for maximum stability, our medium to heavy-duty storage solution is trusted by European and Australian clients who place the highest value on product quality and safety compliance.

Key Features of Our Long-Span Racking Solutions

1. Zero-Wobble Bolted Structural Frame for Ultimate Safety

Unlike light-duty boltless racking that wobbles under stress, Maxrac utilizes high-strength, cold-rolled Q235 steel with secure bolted connections. This industrial bolted structure eliminates structural deformation and guarantees maximum stability, preventing warehouse tipping risks.

2. Massive Load Capacity Tailored for Industrial Performance

Engineered for heavy-duty storage, each beam level safely supports 300 kg to 800 kg Uniformly Distributed Load (UDL) as standard, with customized configurations supporting up to 1,000 kg per level. It is the ideal picking rack for bulky goods, heavy machinery parts, and automotive hardware.

3. 50mm Incremental Flexibility & Vertical Space Optimization

The modular design allows beam levels to be easily adjusted in 50 mm increments. This enables your team to adapt the shelf heights to varying inventory profiles instantly, maximizing vertical cube utilization without wasting premium warehouse space.

4. Factory-Grade Corrosion-Resistant Finish

Every upright and beam undergoes a rigorous surface treatment, including a premium powder-coated or galvanized finish. This durable coating shields the steel against rust, scratches, humidity, and daily warehouse wear and tear.

5. Modular Expansion & Mezzanine Integration

Our longspan shelving is fully expandable. You can seamlessly extend your storage rows with starter and add-on bays, or seamlessly integrate them into multi-tier mezzanine structures as your supply chain scales.

Longspan Shelving Specifications & Custom Capabilities

Moreover, longspan shelving is one of the high performance accessories, which can be assembled with all sorts of warehouse shelving systems to meet your special requirements. For example, mezzanine floors are usually paired with upright of longspan shelving to maximize warehouse spaces.

Apply for different solutions:

Long Span Shelving

Advantage:

• Quick & easy installation with no special tools

• Adjustable height for changes

• Broad selections of frame and beam sizes to meet your requests

• Flexible longspan shelving solutions according to loading capacities and sizes.

Need a Custom Longspan Shelving Solution? Get a Free Layout Design!

Maxrac provides full customization from dimensions and load tiers to custom color schemes to match your brand identity. Don't just buy racks—invest in a tailored warehouse optimization plan.

Fill out the brief inquiry form below with your warehouse dimensions or loading requirements. Our experienced engineering team will provide a Free Professional Quotation & CAD Layout Design within 24 hours.

Specification:

Technical Parameters	Standard Specifications	Custom Capabilities & Project Options
Load Capacity	300 – 800 kg UDL per shelf level	Up to 1,000 kg UDL per level upon request
Assembly Design	Heavy-duty bolted structural frame	Complex configurations & heavy industrial layouts
Frame Height	1,800 mm – 3,000 mm	High-bay scaling up to 11,000 mm
Shelf Depth	500 mm – 800 mm	Deep-reach storage options up to 1,200 mm
Beam Length	1,500 mm – 2,500 mm	Long-span heavy loads up to 3,000 mm
Upright Material	Premium Cold-rolled Q235 Steel	Specialized gauge thicknesses based on weight
Surface Finish	Factory-grade Powder-coated	Heavy-duty Galvanized for cold/outdoor storage
Shelf Base Options	Solid Steel Panels	High-density Particle Board / Wire Mesh Decking

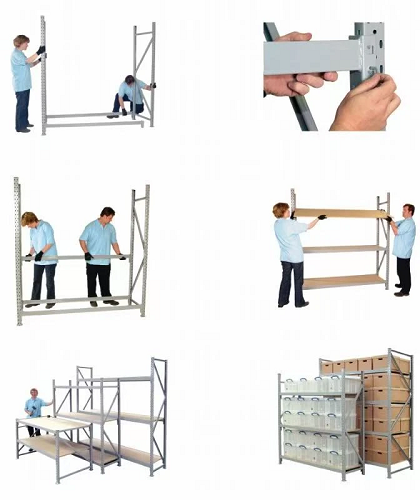

Assembly

Quick and easy installation with no special tools and no special training saves your time and money.
Shelves are easily adjusted to your needs as stock patterns change.
Designed for safety - all components comply with Australian, European, and American guidelines for safe storage.

Long Span Shelving

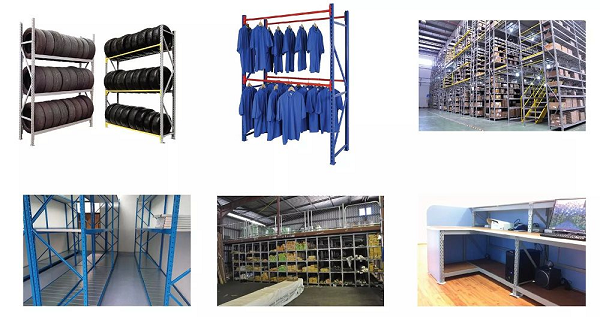

Versatile Applications in Modern Supply Chains

Industrial Manufacturing & Workshops: Securely store heavy industrial components, raw materials, hardware, and manufacturing tools.

Warehouse Distribution Centers: Create high-density order picking zones and sort medium-to-heavy packaged goods for rapid e-commerce fulfillment.

Automotive Parts & Repair Shops: Organize heavy tires, bulky vehicle components, and garage equipment with zero risk of shelf deformation.

Retail & Wholesale Bulk Storage: Streamline heavy carton boxes and bulk inventory for optimized inventory management and rapid restocking.

⬇️ Request Your Factory-Direct Quote & Consult Our Engineers Now ⬇️

Q: Can Maxrac longspan shelving be integrated into a mezzanine system?

A: Yes, absolutely. Our industrial-grade bolted longspan shelving is engineered with the structural integrity required to support multi-tier mezzanine floor installations, allowing you to double your storage capacity using your existing warehouse footprint.

Q: What is the difference between boltless racking and bolted longspan shelving?

A: Boltless racking is typically designed for light-duty, residential, or light commercial use and is prone to swaying. Maxrac's bolted longspan shelving features a heavy-duty industrial bolted structure, offering superior load capacity (300-800kg/level), strict safety compliance, and long-term durability for heavy warehouse environments.
